The OLIS NIR CPL Solo.
Measure circularly polarized luminescence from 800-1700 nm with HarmoniX purity: true CPL, true linear polarization, and the full emission story in one experiment.
The best NIR CPL possible: electronic and optical simplicity and exquisitely sensitive NIR PMT photon counting detection. Three orders of magnitude more sensitive than InGaAs detection alternatives.
When you include scanning excitation, you create more than a great chiroptical system. You create a great NIR spectrofluorescence system.
For the full 350-1700 nm utility, choose the TWIN CPL. www.olisclarity.com/twin-cpl
See the primary CPL pages for the latest on HarmoniX and more, www.olisclarity.com/circularly-polarized-luminescence
Standard Model Performance
Circularly Polarized Luminescence
Fluorescence
Polarization of Fluorescence
Specifications
Upcycle from Standard
Polarized Excitation
Phosphorescence Lifetime
Accessories
In addition to the OLIS Polarization Toolbox common to both CPL Solos:
Optimal excitation is generated by brilliantly intense and perfectly stable LED sources.
Maximum emission sensitivity is achieved using our highest throughput monochromator and a photon counting detector so astonishingly good that we refer to it as Her Majesty.
An equally useful detector with 1/1000th the sensitivity is available at a much lower price point, perfectly suitable for many laboratories.
Instead of the high-speed 50 kHz photoelastic modulator used in other CPL systems, the CPL Solo NIR selects between left and right circularly polarized light using a quarter-waveplate. This switching can be fast or slow according to experimental needs. One can even choose to measure only Lum(L) or Lum(R) for a given experiment.
Why is the small & affordable CPL Solo over every alternative?
An instrument is only as good – and no better – than its components. The OLIS hardware and software are exactly what you would choose, if you were to produce your own world-class CPL. The instrument is built a particular way because it is the best way.
Many alternative designs are available to a company with the expertise of OLIS. But you will find that the CPL Solo is your most electronically simple, functionally specific, and sensitive CPL choice on the international market.
A running joke amongst our engineers is “We’re always looking for light.” Maximum light in, maximum light detected: this is what makes a great spectrophotometer. Here are details on why you can be confident of achieving your best possible CPL results with the small & affordable CPL Solo.
Technologically superior, less expensive, and opening NIR CD & CPL.
Comparing the six OLIS, Jasco, Applied Photophysics, and Edinburgh Instruments CPL models
OLIS CPL Solo Resources

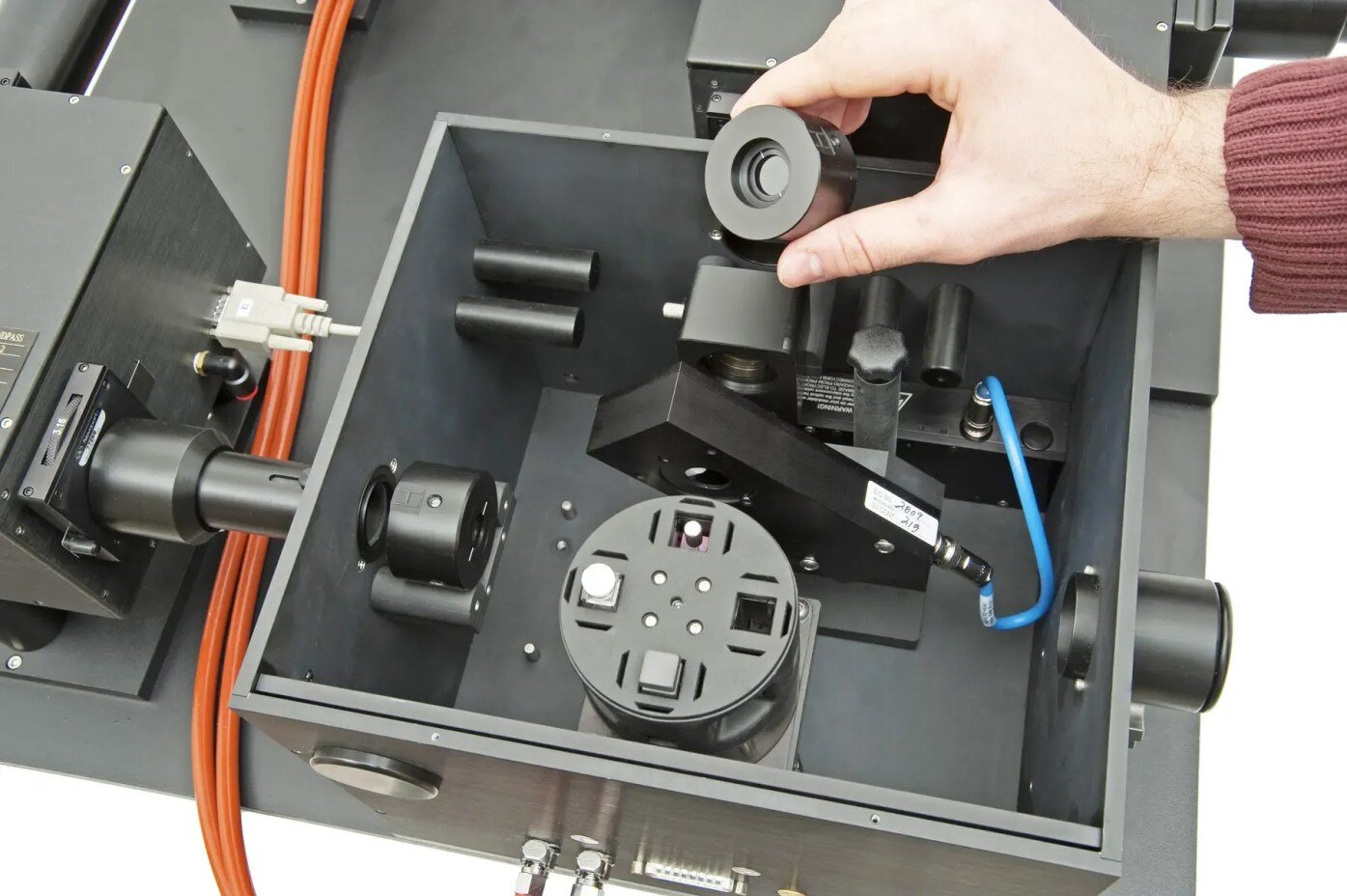

The OLIS Polarization Toolbox is the novel sample compartment used on the
DSM 172, DSM 245, CPL Solo, and NIR CPL Solo
